Payment & Shipping Terms:
|Product Name:||Gobo Glass UV Laser Marking Machine||Laser Wavelength:||355nm|
|Pulse Width:||≤12ns@30KHz||Average Laser Power:||＞3W@30KHz|
|Max Pulse Energy:||＞0.1mJ@30KHz||Cooling Mode:||Air Cooling|
Stainless Steel Uv Laser Marking Machine,
Gobo Glass Uv Laser Marking Machine,
355nm Portable Laser Marking Machine

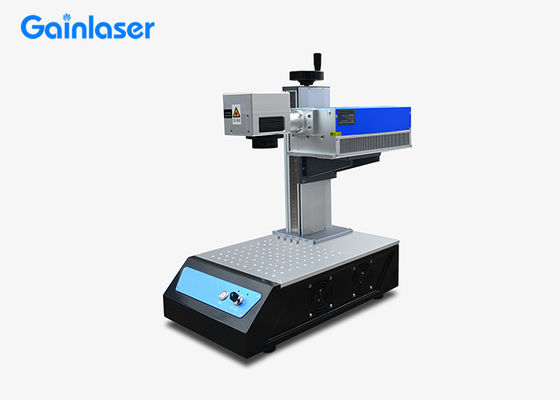

Gobos UV Laser Marking Machine
|Product Name||UV Laser Marker||Model||GL-UV-08G|
|Laser Wavelength||355nm||Cooling Mode||Air Cooled|
|Average Output Power||≥3W@30KHz||Pulse width||≤15ns@30KHz|
|Marking Area||50*50mm||Marking Accuracy||0.01mm|
|Pulse Repetition Frequence||10 KHz - 150 KHz||Mininum Character Size||＜0.09*0.09mm|
|Beam Roundness @ Laser Outlet||≤98%||Max Marking Speed||2000mm/s|
|Machine Size||L670*W320*H670mm||Net Weight||35KG|
|Laser Source Brand||Gainlaser||Power Supply||AC110V / 220V +10% / 50HZ or 60HZ|
|Control Board & Software Brand||JCZ / EZcad2||Operation System||(32 bit , 64 bit)
1. Product Feature
2. What’s UV Laser Marking Machine?
UV Laser Marking Machine is a UV laser with the short wavelength 355nm to generate an intense energy beam breaking the molecular bonds and vaporize the substrate leaving a permanent mark without contacting the substrate. It is very suitable for sensitive and critical material(such as plastic , leather, etc.) marking with the advantage of its "cold marking" methods. Because it offers a higher absorption rate than fiber and CO2 lasers and are less likely to burn the surrounding material because they produce less heat. This is why UV laser is also referred to as “cold processing method”, while fiber and CO2 lasers are called as ‘thermal processing method’. Fiber / CO2 laser marking machine can alter or even burn some heat-sensitive materials, like plastic, leather, etc. This is because the laser energy is not fully absorbed, allowing too much light to pass through without marking the material. You’re left with indecipherable logos, unreadable barcodes, or damaged parts.
4. About us
Shenzhen Gainlaser Laser Technology Co., Ltd. is a professional manufacturer of DPSS nanosecond lasers(355nm, 532nm & 1064nm), DPSS picosecond lasers(1064nm), scan head(355nm, 532nm, 1064nm & 10.6μm) and laser marking machines in Shenzhen, China. Since 2002 established, our group company has been engaging in laser equipments.
Our R&D team is led by Professor Huang Guobiao, former director of SSL Research Center of HUST University, who developed the first picosecond laser in China. Gainlaser has a 100-class dust-free purification laboratory and production workshop, equipped with complete instruments and equipments for solid-state laser testing and auxiliary production. We owns the independent intellectual property rights.
We have complete mechanical processing and sheet metal processing capabilities, and high related supporting capabilities of laser equipments. Besides, we provide complete after-sales services, which responds to clients' after-sales needs quickly.
