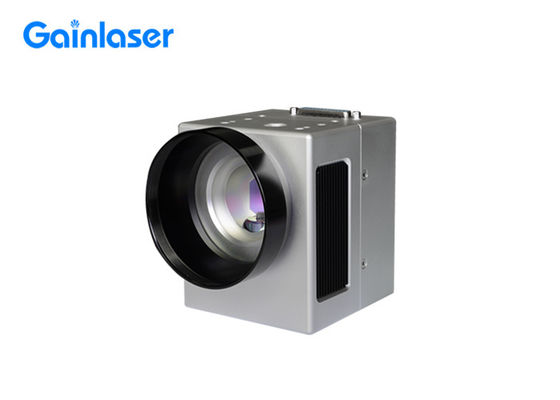

TFT-FSP-10 1064nm Fiber Laser Head For Laser Marking Machines

I'm Online Chat Now

TFT-FSP-10 1064nm Fiber Laser Head For Laser Marking Machines

TFT-FSP-10 1064nm Fiber Laser Head For Laser Marking Machines
TFT-FSP-10 1064nm Fiber Laser Head For Laser Marking Machines

Large Image :  TFT-FSP-10 1064nm Fiber Laser Head For Laser Marking Machines

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Tenfotai
Certification: CE
Model Number: TFT-FSP-10

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Please inquire individually
Packaging Details: Carton
Delivery Time: Within 5 days
Payment Terms: T/T
Supply Ability: 1000 sets per month
Detailed Product Description
Mirror Length: 1064nm Clear Aperture: 10mm
Marking Speed: 4000mm/s Scanning Angle: 3.5 Mrad
High Light:

TFT-FSP-10

,

1064nm fiber laser head

,

1064nm galvo head co2 laser

1064nm Laser Scanning Galvo



1. Product Description

  • TFT-FSP-10A is a 2-dimensional scanning system with 10mm incident light spot, widely used in laser processing, laser marking, laser welding, 3D printing and other fields;
  • The product integrates servo system, electric motor manufacturing and precision machining into itself, having high performance and high reliability;
  • Unique structure design ensures excellent heat transfer performance and shielding performance. Each component is manufactured according to the strict standard of low drift and high stability;
  • Adopting universal XY2-100 communication protocol to receive digital command, it’s applicable to different cards.

TFT-FSP-10 1064nm Fiber Laser Head For Laser Marking Machines 0

TFT-FSP-10 1064nm Fiber Laser Head For Laser Marking Machines 1



2. Technical Parameter

Dynamic Property:

Tracking Error 0.25ms
Long Time 8-hour Drift < 30 mrad
Zero Point Drift <15 urad/k
Gain Drift <50 ppm/k
Photoelectric Property:
Clear Aperture 10 mm
Scanning Angle ±0.35 rad
Nonlinearity 3.5 mrad
Basic Property:
Mirror Wavelength 1064 nm
Marking Speed 4000 mm/s
Positioning Speed 3 m/s
Power Requirement

±15V DC, 3A each path

Working Temp

25℃±10

Interface protocol

XY2-100



3. Mechanical Drawing



TFT-FSP-10 1064nm Fiber Laser Head For Laser Marking Machines 2
