Payment & Shipping Terms:
|Product Name:||Portable UV Laser Marking Machine||Marking Material:||Metal , Plastic , Glass , Ceramic , Leather , Etc.|
|Marking Accuracy:||0.01mm||Minimum Letter Size:||＜0.2mm|
|Product Weight:||35KG||Cooling Mode:||Air Cooling|
JCZ Desktop Laser Marking Machine,
3Watt Desktop Laser Marking Machine,
Wooden Craft Gift UV Laser Marker

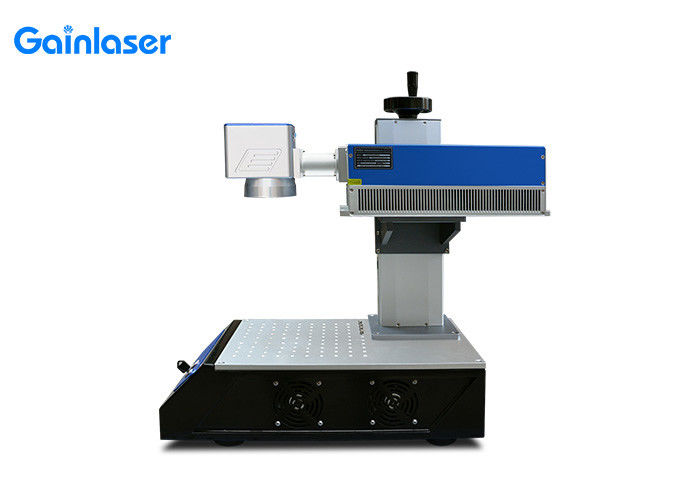

3W Portable UV Laser Marker for LED Lamp , Plastic
1. Product Highlight
|Product Name||Portable UV Laser Marking Machine||Model||GL-UV-08A|
|Laser Wavelength||355nm||Cooling Mode||Air Cooled|
|Average Output Power||≥3W@30KHz||Pulse Width Type||≤15ns@30KHz|
|Marking Area||110*110mm||Marking Accuracy||0.01mm|
|Pulse Repetition Frequence||10 KHz - 150 KHz||Mininum Character Size||0.15*0.15mm|
|Beam Roundness @ Laser Outlet||≤96%||Max Marking Speed||2000mm/s|
|Machine Size||L670*W320*H670mm||Net Weight||34KG|
|Laser Source Brand||Gainlaser||Power Supply||AC110V / 220V +10% / 50HZ or 60HZ|
|Control Board & Software Brand||JCZ / EZcad2||Operation System||
Win XP / 7 / 8 / 10
(32 bit , 64 bit)
2. What’s UV Laser Marking Machine?
UV laser marking machines are usually designed in the 355nm UV laser wavelength and can mark a wide range of materials. They are perfect for “cold marking” applications, where lasers producing heat is not applicable. UV laser can mark materials like plastics, ceramics and glass without the need of additives. Due to the high quality beam, UV laser can micro-mark electronics, circuit boards and microchips. They are also superb for use on solar panels and precise medical equipment marking.
Gainlaser’s UV laser machines direct part marking technology creates readable marks fast for more efficient identification and traceability. The machines get damage-free results on thin metals, plastics, glass, and a variety of other organic or heat-sensitive materials.
The UV laser machine is a versatile solution for a range of industries. Medical device manufacturers use our UV or “cold marking” solutions to create smooth, hygienic marks. In electronics and automotive industries, UV lasers allow companies to mark small, delicate components, including circuit boards and silicon wafers, with less waste.
Our UV Laser Marking Machine uses a 355 nm UV laser wavelength. These ultraviolet wavelengths deliver some of the highest absorption rates, minimizing heat stress that can lead to damaged products.
4 UV Laser Parameters
5. UV Laser Marking Samples
1) Metal Marking
2) Plastic Material Marking
UV laser can apply to most universal plastic and some engineering plastics, such as PP, PE, PBT, PET, PA, ABS, POM, PS, PC, PUS, EVA, etc., and plastic alloy, like PC/ABS and other material. The marking is clear and bright, and can mark black and white color on natural color plastic, white plastic, colored plastic and black plastic. Successful commercialized application in the plastics include animal ear tag, light switch cover, cosmetic packaging material, vehicle interior button and doorknob, instrument panel, ABS keyboard, HDPE, PET and PVC rigid container and container cover, nylon and PBT automobile and non-automobile electrical connector, engine hood element such as fuse box and air cap, anti-counterfeit labels, container lock catch, stationery, home appliance shell, etc.
2) Other Material
1. Are you manufacturer or reseller?
Answer: Since the year of 2002, our company engages laser processing equipments. At beginning, we design and produce the metal housing of laser processing machines. In 2013, our company began developing laser scan heads, including mirror wavelength 355nm, 532nm, 1064nm & 10.6μm. With our company business development, we research and develop DPSS laser from the year of 2015. Meanwhile, we provide complete UV laser marking machines. We’re a well-known brand and have increasing market share in domestic market, we have more than 3000 clients in China domestic market.
2. How do you position your UV laser for product quality compared to your competitors of HUARAY, Inno, Inngu?
Answer: In terms of market feedback, the quality of our UV laser is almost same with the competitors. According to test report, the technical parameters of our lasers are very close to HUARAY, you could compare the parameters yourself. And, our UV laser adopts American brand imported semiconductor, including ‘Nlight’, ‘Coherent’, etc. Besides, our UV lasers are small size and portable design, for example our air cool UV laser size L374*W142*H125mm, net weight 8KG and water cool UV laser size L395*W142*H125mm, net weight 7.5KG.
3. How about the performance of your scan head?
Answer: no deformation when mark tiny letters for example letter height 0.1mm. The repetitive positioning precision of our scan head is within 10μm. According to our technical testing, mark two same patterns on transparent materials by using our scan head, both of the patterns can coincide exactly.
4. What’s the marking control board and software in your machine?
Answer: we adopt JCZ control board and EZcad software.
5. What kind of materials can your machines mark?
Answer: UV laser can mark most common materials, including plastic, glass, metal, leather, diamond, wood, paper, etc. Compared with fiber laser and CO2 laser, the processing temperature of UV laser is obviously lower, and UV laser’s heat affected zone is smaller. For some materials, UV laser works better. Besides, since UV laser’s wavelength is shorter and its focused laser spot is much smaller, the marking precision of UV laser is obviously higher, which make it especially suitable to mark small letters.
6. What’s the warranty of your products? After I purchase your products, if any problem happens, what can you help us?
Answer: the warranty of our products are 12 months. If any non-artificial problem happen to our products, free spare parts will be provided to you, or we help you to repair it. We provide on-line remote technical support. Any requirement of after-sale need from client is responded in 24 hours.
7. Client Feedback
