High Precision 3W 2000mm/S UV Laser Marking Machine

High Precision 3W 2000mm/S UV Laser Marking Machine
High Precision 3W 2000mm/S UV Laser Marking Machine High Precision 3W 2000mm/S UV Laser Marking Machine

Large Image :  High Precision 3W 2000mm/S UV Laser Marking Machine

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gainlaser
Certification: CE
Model Number: GL-UV-04G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Please inquire individually
Packaging Details: Export Wooden Case
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 100 sets per months
Detailed Product Description

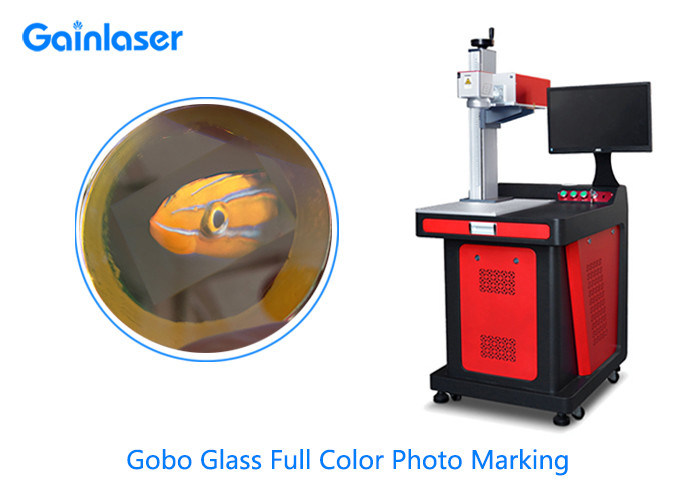

Product Name: Gobo Glass UV Laser Marking Machine Laser Wavelength: 355nm
Pulse Width: ≤12ns@30KHz Average Laser Power: >3W@30KHz
Max Pulse Energy: >0.1mJ@30KHz Cooling Mode: Air Cooling
High Light:

3W 2000mm/s UV Laser Marking Machine

,

3W 2000mm/s

,

3W 2000mm/s UV laser marker

Gobo Maker UV Laser Marking Machine

1. Product Feature

  • High marking precision, minimum letter size < 0.09*0.09mm;

  • High repetitive precision galvo scan head, multi color gobos coincide exactly;

  • Narrow pulse width ≤12ns@30KHz UV laser, improving marking precision to the best;

  • High quality field lens, improving marking precision to the best;

  • Small portable machine, easy and simple operation.

High Precision 3W 2000mm/S UV Laser Marking Machine 0
High Precision 3W 2000mm/S UV Laser Marking Machine 1

2. What’s UV Laser Marking Machine?
UV Laser Marking Machine is a UV laser with the short wavelength 355nm to generate an intense energy beam breaking the molecular bonds and vaporize the substrate leaving a permanent mark without contacting the substrate. It is very suitable for sensitive and critical material(such as plastic , leather, etc.) marking with the advantage of its "cold marking" methods. Because it offers a higher absorption rate than fiber and CO2 lasers and are less likely to burn the surrounding material because they produce less heat. This is why UV laser is also referred to as “cold processing method”, while fiber and CO2 lasers are called as ‘thermal processing method’. Fiber / CO2 laser marking machine can alter or even burn some heat-sensitive materials, like plastic, leather, etc. This is because the laser energy is not fully absorbed, allowing too much light to pass through without marking the material. You’re left with indecipherable logos, unreadable barcodes, or damaged parts.
High Precision 3W 2000mm/S UV Laser Marking Machine 2

High Precision 3W 2000mm/S UV Laser Marking Machine 3

3. Technical Parameter

Product NameGobo UV Laser MarkerModelGL-UV-08G
Laser Wavelength355nmCooling ModeAir Cooled
Average Output Power≥3W@30KHzPulse width≤12ns@30KHz
Marking Area50*50mmMarking Accuracy0.01mm
Pulse Repetition Frequence10 KHz - 150 KHzMininum Character Size<0.09*0.09mm
Beam Roundness @ Laser Outlet≤98%Max Marking Speed2000mm/s
Machine SizeL670*W320*H670mmNet Weight35KG
Laser Source BrandGainlaserPower SupplyAC110V / 220V +10% / 50HZ or 60HZ
Control Board & Software BrandJCZ / EZcad2Operation SystemWin XP / 7 / 8 / 10

(32 bit , 64 bit)


4. Marking Sample
High Precision 3W 2000mm/S UV Laser Marking Machine 4High Precision 3W 2000mm/S UV Laser Marking Machine 5
High Precision 3W 2000mm/S UV Laser Marking Machine 6

6. About us
Shenzhen Gainlaser Laser Technology Co., Ltd. is a professional manufacturer of DPSS nanosecond lasers(355nm, 532nm & 1064nm), DPSS picosecond lasers(1064nm), scan head(355nm, 532nm, 1064nm & 10.6μm) and laser marking machines in Shenzhen, China. Since 2002 established, our group company has been engaging in laser equipments.

Our R&D team is led by Professor Huang Guobiao, former director of SSL Research Center of HUST University, who developed the first picosecond laser in China. Gainlaser has a 100-class dust-free purification laboratory and production workshop, equipped with complete instruments and equipments for solid-state laser testing and auxiliary production. We owns the independent intellectual property rights.

We have complete mechanical processing and sheet metal processing capabilities, and high related supporting capabilities of laser equipments. Besides, we provide complete after-sales services, which responds to clients' after-sales needs quickly.
High Precision 3W 2000mm/S UV Laser Marking Machine 7High Precision 3W 2000mm/S UV Laser Marking Machine 8High Precision 3W 2000mm/S UV Laser Marking Machine 9High Precision 3W 2000mm/S UV Laser Marking Machine 10High Precision 3W 2000mm/S UV Laser Marking Machine 11High Precision 3W 2000mm/S UV Laser Marking Machine 12High Precision 3W 2000mm/S UV Laser Marking Machine 13High Precision 3W 2000mm/S UV Laser Marking Machine 14High Precision 3W 2000mm/S UV Laser Marking Machine 15
