|Wavelength:||355nm||Average Output Power:||＞3W@30KHz|
|Cooling Mode:||Air Cooled||Max Pulse Energy:||＞0.125mJ@30KHz|
|Name:||DPSS UV Laser||Application:||For Gobo Glass Silicone Wristband|
YVO4 YAG Uv Laser Marking Machine,
Uv Laser Marking Machine 30KHz,
0.125mJ UV Marking Engraving Machine

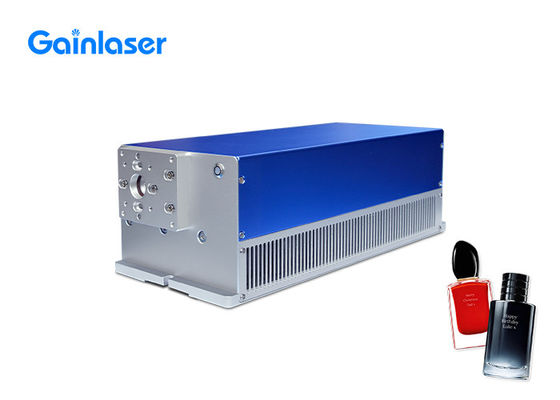

5W 355nm UV Solid State Laser Source
1. Comparison among 355nm UV Laser, 1064nm Fiber Laser and 10600nm CO2 Laser
1. The shorter the wavelength, the more concentrated the energy. The greater the energy, the more light that material will absorb. Greater absorption = Better quality mark. Compared with long wavelength 1064nm fiber laser and CO2 laser, 35nm UV laser can make better quality mark;
2. UV lasers are generally used for intricate, precise marks on the micro level. Their focused wavelengths allow for a high beam intensity and miniscule spot size;
3. UV laser are especially suitable for laser marking soft materials. Because it offers a higher absorption rate than fiber and CO2 lasers and are less likely to burn the surrounding material because they produce less heat. This is why UV laser is also referred to as “cold processing method”, while fiber and CO2 lasers are called as ‘thermal processing method’;
4. Fiber / CO2 laser marking machine can alter or even burn some heat-sensitive materials, like plastic, leather, etc. This is because the laser energy is not fully absorbed, allowing too much light to pass through without marking the material. You’re left with indecipherable logos, unreadable barcodes, or damaged parts.
2. Product Description
Suitable material: Metals, Glass, Crystal, PCBs, plastics, fiber, paper, coatings, silicon wafer, LCD, polyamides, wires, plugs, etc., Electrical components,integrated chips,electric appliance ,communication equipment, tools, precision machinery,glass frames,clocks and watches accessories,automotive accessories, fake proof,marking ,plastic buttons,construction material,packaging, PVC pipes and medical instrument processing and manufacturing, It can mark date, bar code and two-dimension code automatically.
3. Technical Parameter
|Laser Crystal||Nd:YVO4||Spatial Mode||TEMoo(M2＜1.2)|
|Wavelength||355nm||Polarization Ratio:||＞100:1 Horizontal|
|Output Power||＞3W@30KHz||1/e2 Beam Diameter @ Output||0.6mm|
|Max pulse energy||＞0.125mJ@40KHz||Beam circularity||≤96%|
|Pulse repetition frequency||10-150KHz||Cooling Mode||Air Cooling|
|Pulse duration||＜15ns@30KHz||Ambient temperature||18℃ - 35℃|
|Average power stability||＜3%||Net weight||7.5KG|
4. Product Application
1) KN95 Mask Marking
2) Since the focal spot of UV laser is very tiny and processing temperature is low, furthermore as a non-contact marking technology, UV laser is very suitable to mark glass material. Successful UV laser commercialized applications include wine bottle, flavour bottle, drinking bottle and other industries glass bottle package and glass tableware, glass crafts gifts, crystal marking, etc. Besides marking glass directly, UV laser can also remove paint or coat on glass to form text or pattern, like logo, number or other patterns;
3) Metal laser marking
UV laser can mark identification on common metals, such as stainless steel, copper, aluminum, gold, silver, carbon steel, various alloy steel, tool steel, hard alloy, aluminum alloy, chromium plating, nickel plating, zinc plating, various grinding, polished metal surface, etc. The identification can be logo, product name, technical parameter, supplier name, safety matters, etc.
4) Plastic material processing
UV laser can apply to most universal plastic and some engineering plastics, such as PP, PE, PBT, PET, PA, ABS, POM, PS, PC, PUS, EVA, etc., and plastic alloy, like PC/ABS and other material. The marking is clear and bright, and can mark black and white color on natural color plastic, white plastic, colored plastic and black plastic. Successful commercialized application in the plastics include animal ear tag, light switch cover, cosmetic packaging material, vehicle interior button and doorknob, instrument panel, ABS keyboard, HDPE, PET and PVC rigid container and container cover, nylon and PBT automobile and non-automobile electrical connector, engine hood element such as fuse box and air cap, anti-counterfeit labels, container lock catch, stationery, home appliance shell, etc.
6) Ceramic Marking
7) Leather Marking
8) Glass Coating Removing
9) Wood Marking
10) Fruit Marking
5. About us
Shenzhen Gainlaser Laser Technology Co., Ltd. is a professional manufacturer of DPSS nanosecond lasers(355nm, 532nm & 1064nm), DPSS picosecond lasers(1064nm), scan head(355nm, 532nm, 1064nm & 10.6μm) and laser marking machines in Shenzhen, China. Since 2002 established, our group company has been engaging in laser equipments.
Our R&D team is led by Professor Huang Guobiao, former director of SSL Research Center of HUST University, who developed the first picosecond laser in China. Gainlaser has a 100-class dust-free purification laboratory and production workshop, equipped with complete instruments and equipments for solid-state laser testing and auxiliary production. We owns the independent intellectual property rights.
We have complete mechanical processing and sheet metal processing capabilities, and high related supporting capabilities of laser equipments. Besides, we provide complete after-sales services, which responds to clients' after-sales needs quickly.
