Nanosecond 3watt DPSS UV Laser For Laser Marking

Nanosecond DPSS UV Laser Source Small Size 3W

1. Product Line

Shenzhen Gainlaser Laser Technology Co.,Ltd mainly produce 355nm nanosecond UV laser, 1064nm picosecond laser and laser marking machines. Below photo shows our product line of UV laser marking machines:

2. Product Description

• The laser generates 355nm UV laser with average output power ＞3W@30KHz;
• Client can choose laser crystal YVO4 or YAG according to actual need to meet final tech requirements;
• The laser is filtered twice inside laser resonator, besides client can opt intracavity primary beam expanding, lowering damage possibility of brewster window;
• The laser has an integrated driving circuit board inside. When connecting with stabilized voltage power supply, UV laser will be generated, improving the operation convenience and laser stability;
• The laser supports air cooled mode, it has a high effective aluminum cooling module with 7 fans and short wind pathway, guaranteeing quick cooling effect and device work normally;
• Adopting non-adjusting-frame manufacturing tech, the mechanical performance is more reliable and can work stably longer.


3. Technical Parameter

4. Product Application

1) UV Laser SLA 3D Printing Samples

SLA 3D Printer use 355nm UV laser light to cure light-reactive thermoset resin into hardened plastic. When SLA resins are exposed to UV laser light, short molecular chains join together, polymerizing monomers and oligomers into solidified rigid or flexible geometries.

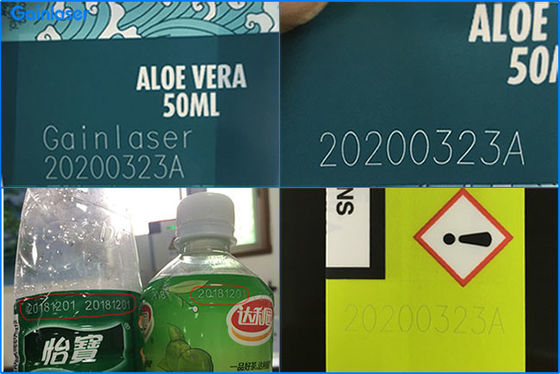

2) UV laser can apply to most universal plastic and some engineering plastics, such as PP, PE, PBT, PET, PA, ABS, POM, PS, PC, PUS, EVA, etc., and plastic alloy, like PC/ABS and other material. The marking is clear and bright, and can mark black and white color on natural color plastic, white plastic, colored plastic and black plastic. Successful commercialized application in the plastics include animal ear tag, light switch cover, cosmetic packaging material, vehicle interior button and doorknob, instrument panel, ABS keyboard, HDPE, PET and PVC rigid container and container cover, nylon and PBT automobile and non-automobile electrical connector, engine hood element such as fuse box and air cap, anti-counterfeit labels, container lock catch, stationery, home appliance shell, etc.

3) Glass material processing

Since the focal spot of UV laser is very tiny and processing temperature is low, furthermore as a non-contact marking technology, UV laser is very suitable to mark glass material. Successful UV laser commercialized applications include wine bottle, flavour bottle, drinking bottle and other industries glass bottle package and glass tableware, glass crafts gifts, crystal marking, etc. Besides marking glass directly, UV laser can also remove paint or coat on glass to form text or pattern, like logo, number or other patterns;

4) Leather Marking

5) Wood Marking

6) Fruit Marking

6. Company Profile

Shenzhen Gainlaser Laser Technology Co., Ltd. is a professional manufacturer of DPSS nanosecond lasers(355nm, 532nm & 1064nm), DPSS picosecond lasers(1064nm), scan head(355nm, 532nm, 1064nm & 10.6μm) and laser marking machines in Shenzhen, China. Since 2002 established, our group company has been engaging in laser equipments.

Our R&D team is led by Professor Huang Guobiao, former director of SSL Research Center of HUST University, who developed the first picosecond laser in China. Gainlaser has a 100-class dust-free purification laboratory and production workshop, equipped with complete instruments and equipments for solid-state laser testing and auxiliary production. We owns the independent intellectual property rights.

We have complete mechanical processing and sheet metal processing capabilities, and high related supporting capabilities of laser equipments. Besides, we provide complete after-sales services, which responds to clients' after-sales needs quickly.
