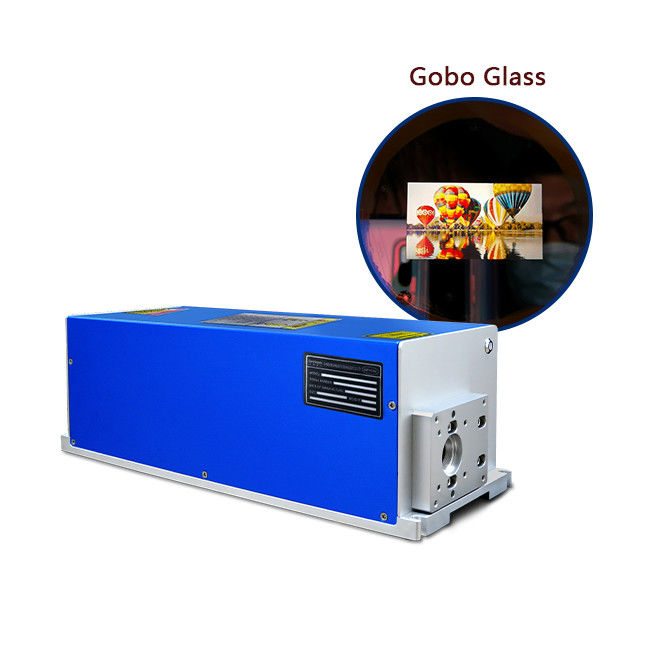

Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ

Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ
Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ

Large Image :  Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gainlaser
Certification: CE
Model Number: GL-WC-UV03
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Please inquire individually
Packaging Details: Export Wooden Case
Delivery Time: Within 5 days
Payment Terms: T/T
Supply Ability: 1000 sets per month
Detailed Product Description
Laser Wavelength: 355nm Average Output Power: >3W@30KHz
Max Pulse Energy: >0.1mJ@30KHz Cooling Mode: Water Cooling
Pulse Repetitive Frequency: 1-150KHz Unfocused Beam Roundness: ≤96%
High Light:

Gold Engraving DPSS UV Laser

,

Jewelry Glass DPSS UV Laser

,

0.125mJ Uv Laser Marking Machine

Air-cooled Nd:Yag Laser



1. Product Description

  • The laser generates 355nm UV laser with average output power >3W@30KHz;
  • Client can choose laser crystal YVO4 or YAG according to actual need to meet final tech requirements;
  • The laser is filtered twice inside laser resonator, besides client can opt intracavity primary beam expanding, lowering damage possibility of brewster window;
  • The laser has an integrated driving circuit board inside. When connecting with stabilized voltage power supply, UV laser will be generated, improving the operation convenience and laser stability;
  • Water cooling mode, high temperature resistance;
  • Adopting non-adjusting-frame manufacturing tech, the mechanical performance is more reliable and can work stably longer.
  • With cold laser processing and a small heat-affected zone, it can achieve high-quality processing




2. Comparison among 355nm UV Laser, 1064nm Fiber Laser and 10600nm CO2 Laser

1) The shorter the wavelength, the more concentrated the energy. The greater the energy, the more light that material will absorb. Greater absorption = Better quality mark. Compared with long wavelength 1064nm fiber laser and CO2 laser, 35nm UV laser can make better quality mark;

Wavelength Type Wave Length Laser Type
Short Wavelength 355 nm UV Laser
Moderate Wavelength 1064 nm Fiber Laser
Long Wavelength 10600 nm CO2 Laser



2) UV lasers are generally used for intricate, precise marks on the micro level. Their focused wavelengths allow for a high beam intensity and miniscule spot size;

3) UV laser are especially suitable for laser marking soft materials. Because it offers a higher absorption rate than fiber and CO2 lasers and are less likely to burn the surrounding material because they produce less heat. This is why UV laser is also referred to as “cold processing method”, while fiber and CO2 lasers are called as ‘thermal processing method’;

4) Fiber / CO2 laser marking machine can alter or even burn some heat-sensitive materials, like plastic, leather, etc. This is because the laser energy is not fully absorbed, allowing too much light to pass through without marking the material. You’re left with indecipherable logos, unreadable barcodes, or damaged parts.

Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 0



Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 1



3. Technical Parameter

Laser Crystal Nd:YVO4 Spatial Mode TEMoo(M2<1.2)
Wavelength 355nm Polarization Ratio: >100:1 Horizontal
Output Power >5W@40KHz 1/e2 Beam Diameter @ Output 0.6mm
Max pulse energy >0.125mJ@40KHz Beam circularity ≤96%
Pulse repetition frequency 10-150KHz Cooling Mode Water Cooling
Pulse duration <15ns@30KHz Ambient temperature 18℃ - 35℃
Pulse-to-pulse stability <3% Size 395*142*125mm
Average power stability <3% Net weight 7.5KG



Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 2



3. Product Application

1) KN95 Mask Marking

Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 3



2) Plastic Marking

Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 4

Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 5

Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 6



2) Glass Marking

Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 7

Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 8



3) Metal Marking

Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 9



4) Leather Marking

Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 10



5. Company Profile

Shenzhen Gainlaser Laser Technology Co., Ltd. is a professional manufacturer of DPSS nanosecond lasers(355nm, 532nm & 1064nm), DPSS picosecond lasers(1064nm), scan head(355nm, 532nm, 1064nm & 10.6μm) and laser marking machines in Shenzhen, China. Since 2002 established, our group company has been engaging in laser equipments.



Our R&D team is led by Professor Huang Guobiao, former director of SSL Research Center of HUST University, who developed the first picosecond laser in China. Gainlaser has a 100-class dust-free purification laboratory and production workshop, equipped with complete instruments and equipments for solid-state laser testing and auxiliary production. We owns the independent intellectual property rights.



We have complete mechanical processing and sheet metal processing capabilities, and high related supporting capabilities of laser equipments. Besides, we provide complete after-sales services, which responds to clients' after-sales needs quickly.

Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 11Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 12Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 13Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 14Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 15Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 16Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 17Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 18Gold Engraving Jewelry Glass DPSS UV Laser 3w 5w 1-150KHz 0.125mJ 19
