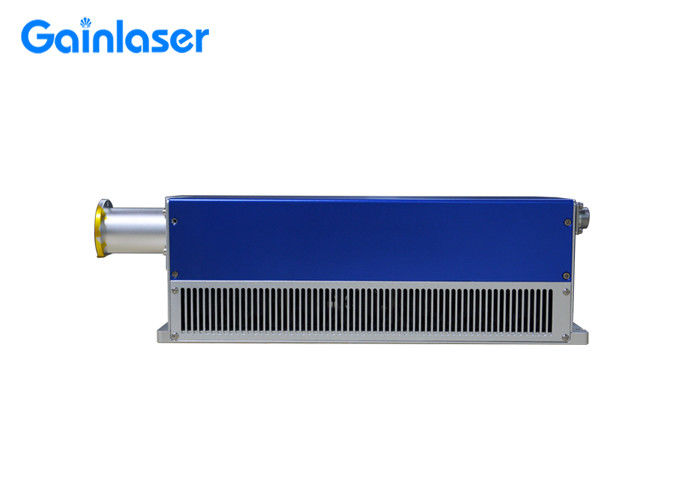

532nm 7W DPSS Green Laser For Laser Marking

532nm 7W DPSS Green Laser  For Laser Marking
532nm 7W DPSS Green Laser  For Laser Marking

Large Image :  532nm 7W DPSS Green Laser For Laser Marking

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gainlaser
Certification: CE
Model Number: GL-AC-GR07
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Please inquire individually
Packaging Details: Export Wooden Case
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 500 units per month
Detailed Product Description
Wavelength: 532nm Average Power: >7W@50KHz
Cooling Mode: Air Cooling Max Pulse Energy: >0.14mJ@50KHz
1/e2 Beam Diameter @ Output: 0.7mm Unfocused Beam Roundness: ≤96%
High Light:

7W DPSS Green Laser


532nm DPSS Green Laser


532nm galvo laser head

532nm DPSS Green Laser 7W Air Cooled for Laser Marking


1. Product Description

  • The laser generates 532nm green laser with average output power >7W@50KHz;
  • Client can choose laser crystal YVO4 or YAG according to actual need to meet final tech requirements;
  • The laser is filtered twice inside laser resonator, besides client can opt intracavity primary beam expanding, lowering damage possibility of brewster window;
  • The laser has an integrated driving circuit board inside. When connecting with stabilized voltage power supply, UV laser will be generated, improving the operation convenience and laser stability;
  • Water cooling mode, high temperature resistance;
  • Adopting non-adjusting-frame manufacturing tech, the mechanical performance is more reliable and can work stably longer.

532nm 7W DPSS Green Laser  For Laser Marking 0


2. Technical Parameter

Laser Crystal Nd:YVO4 Spatial Mode TEMoo(M2<1.5)
Wavelength 532nm Polarization Ratio: >100:1 Vertical
Output Power >7W@50KHz 1/e2 Beam Diameter @ Output 0.7mm
Max Pulse Energy >0.14mJ@50KHz Beam Circularity ≤97%
Pulse Repetition Frequency 10-150KHz Cooling Mode Air Cooling
Pulse Duration <20ns@50KHz Ambient Temperature 18℃ - 35℃
Pulse-to-pulse Stability <3% Size 374*142*125mm
Average Power Stability <3% Net Weight 8KG


532nm 7W DPSS Green Laser  For Laser Marking 1


3. FAQ

1. Are you manufacturer or reseller?
Answer: Since the year of 2002, our company engages laser processing equipments. At beginning, we design and produce the metal housing of laser processing machines. In 2013, our company began developing laser scan heads, including mirror wavelength 355nm, 532nm, 1064nm & 10.6μm. With our company business development, we research and develop DPSS laser from the year of 2015. Meanwhile, we provide complete UV laser marking machines. We’re a well-known brand and have increasing market share in domestic market, we have more than 3000 clients in China domestic market.


2. How do you position your UV laser for product quality compared to your competitors of HUARAY, Inno, Inngu?

Answer: In terms of market feedback, the quality of our UV laser is almost same with the competitors. According to test report, the technical parameters of our lasers are very close to HUARAY, you could compare the parameters yourself. And, our UV laser adopts American brand imported semiconductor, including ‘Nlight’, ‘Coherent’, etc. Besides, our UV lasers are small size and portable design, for example our air cool UV laser size L374*W142*H125mm, net weight 8KG and water cool UV laser size L395*W142*H125mm, net weight 7.5KG.


3. How about the performance of your scan head?

Answer: no deformation when mark tiny letters for example letter height 0.1mm. The repetitive positioning precision of our scan head is within 10μm. According to our technical testing, mark two same patterns on transparent materials by using our scan head, both of the patterns can coincide exactly.


4. What’s the marking control board and software in your machine?
Answer: we adopt JCZ control board and EZcad software.


5. What kind of materials can your machines mark?

Answer: UV laser can mark most common materials, including plastic, glass, metal, leather, diamond, wood, paper, etc. Compared with fiber laser and CO2 laser, the processing temperature of UV laser is obviously lower, and UV laser’s heat affected zone is smaller. For some materials, UV laser works better. Besides, since UV laser’s wavelength is shorter and its focused laser spot is much smaller, the marking precision of UV laser is obviously higher, which make it especially suitable to mark small letters.


6. What’s the warranty of your products? After I purchase your products, if any problem happens, what can you help us?

Answer: the warranty of our products are 12 months. If any non-artificial problem happen to our products, free spare parts will be provided to you, or we help you to repair it. We provide on-line remote technical support. Any requirement of after-sale need from client is responded in 24 hours.


4. Client Feedback

532nm 7W DPSS Green Laser  For Laser Marking 2


5. Company Profile

Shenzhen Gainlaser Laser Technology Co., Ltd. is a professional manufacturer of DPSS nanosecond lasers(355nm, 532nm & 1064nm), DPSS picosecond lasers(1064nm), scan head(355nm, 532nm, 1064nm & 10.6μm) and laser marking machines in Shenzhen, China. Since 2002 established, our group company has been engaging in laser equipments.


Our R&D team is led by Professor Huang Guobiao, former director of SSL Research Center of HUST University, who developed the first picosecond laser in China. Gainlaser has a 100-class dust-free purification laboratory and production workshop, equipped with complete instruments and equipments for solid-state laser testing and auxiliary production. We owns the independent intellectual property rights.


We have complete mechanical processing and sheet metal processing capabilities, and high related supporting capabilities of laser equipments. Besides, we provide complete after-sales services, which responds to clients' after-sales needs quickly.

532nm 7W DPSS Green Laser  For Laser Marking 3532nm 7W DPSS Green Laser  For Laser Marking 4532nm 7W DPSS Green Laser  For Laser Marking 5532nm 7W DPSS Green Laser  For Laser Marking 6532nm 7W DPSS Green Laser  For Laser Marking 7532nm 7W DPSS Green Laser  For Laser Marking 8532nm 7W DPSS Green Laser  For Laser Marking 9532nm 7W DPSS Green Laser  For Laser Marking 10532nm 7W DPSS Green Laser  For Laser Marking 11
