|Mirror Wavelength:||10600nm||Clear Aperture:||10mm|
|Max Marking Speed:||5000mm/s||Scanning Angle:||±0.35 Rad|
|Long Time 8-hour Drift:||＜ 30 Mrad||Zero Point Drift:||＜15 Urad/k|
4000 Mm/S CO2 Galvo Scanner,
CO2 Galvo Scanner for 10600nm CO2 Laser,
galvanometer laser scanner for 10600nm CO2 Laser

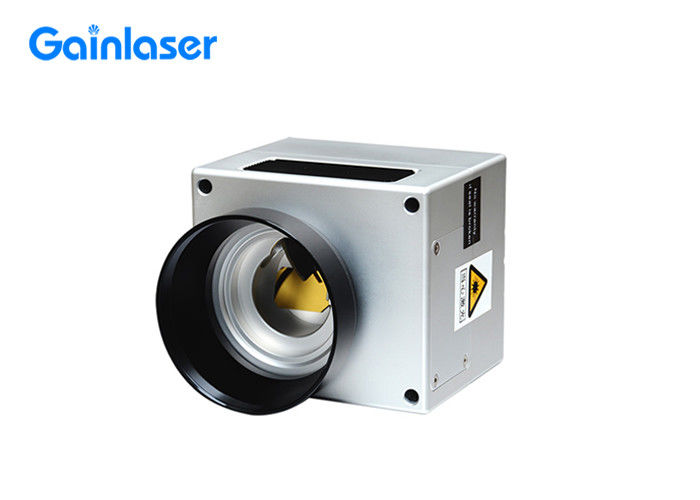

10600nm CO2 Galvo Scanner 5000mm/s for CO2 Laser
1. Product Description
2. Technical Parameter
|Long Time 8-hour Drift||＜ 30 mrad|
|Zero Point Drift||＜15 urad/k|
|Gain Drift||＜50 ppm/k|
|Clear Aperture||10 mm|
|Scanning Angle||±0.35 rad|
|Mirror Wavelength||10600 nm|
|Marking Speed||4000 mm/s|
|Positioning Speed||3 m/s|
|Power Requirement||±15V DC, 3A each path|
3. Mechanical Drawing
4. Product Package
1. Are you manufacturer or reseller?
Answer: Since the year of 2002, our company engages laser processing equipments. At beginning, we design and produce the metal housing of laser processing machines. In 2013, our company began developing laser scan heads, including mirror wavelength 355nm, 532nm, 1064nm & 10.6μm. With our company business development, we research and develop DPSS laser from the year of 2015. Meanwhile, we provide complete UV laser marking machines. We’re a well-known brand and have increasing market share in domestic market, we have more than 3000 clients in China domestic market.
2. How do you position your UV laser for product quality compared to your competitors of HUARAY, Inno, Inngu?
Answer: In terms of market feedback, the quality of our UV laser is almost same with the competitors. According to test report, the technical parameters of our lasers are very close to HUARAY, you could compare the parameters yourself. And, our UV laser adopts American brand imported semiconductor, including ‘Nlight’, ‘Coherent’, etc. Besides, our UV lasers are small size and portable design, for example our air cool UV laser size L374*W142*H125mm, net weight 8KG and water cool UV laser size L395*W142*H125mm, net weight 7.5KG.
3. How about the performance of your scan head?
Answer: no deformation when mark tiny letters for example letter height 0.1mm. The repetitive positioning precision of our scan head is within 10μm. According to our technical testing, mark two same patterns on transparent materials by using our scan head, both of the patterns can coincide exactly.
4. What’s the marking control board and software in your machine?
Answer: we adopt JCZ control board and EZcad software.
5. What kind of materials can your machines mark?
Answer: UV laser can mark most common materials, including plastic, glass, metal, leather, diamond, wood, paper, etc. Compared with fiber laser and CO2 laser, the processing temperature of UV laser is obviously lower, and UV laser’s heat affected zone is smaller. For some materials, UV laser works better. Besides, since UV laser’s wavelength is shorter and its focused laser spot is much smaller, the marking precision of UV laser is obviously higher, which make it especially suitable to mark small letters.
6. What’s the warranty of your products? After I purchase your products, if any problem happens, what can you help us?
Answer: the warranty of our products are 12 months. If any non-artificial problem happen to our products, free spare parts will be provided to you, or we help you to repair it. We provide on-line remote technical support. Any requirement of after-sale need from client is responded in 24 hours.
6. Client Feedback
7. Company Profile
Shenzhen Gainlaser Laser Technology Co., Ltd. is a professional manufacturer of DPSS nanosecond lasers(355nm, 532nm & 1064nm), DPSS picosecond lasers(1064nm), scan head(355nm, 532nm, 1064nm & 10.6μm) and laser marking machines in Shenzhen, China. Since 2002 established, our group company has been engaging in laser equipments.
Our R&D team is led by Professor Huang Guobiao, former director of SSL Research Center of HUST University, who developed the first picosecond laser in China. Gainlaser has a 100-class dust-free purification laboratory and production workshop, equipped with complete instruments and equipments for solid-state laser testing and auxiliary production. We owns the independent intellectual property rights.
We have complete mechanical processing and sheet metal processing capabilities, and high related supporting capabilities of laser equipments. Besides, we provide complete after-sales services, which responds to clients' after-sales needs quickly.
