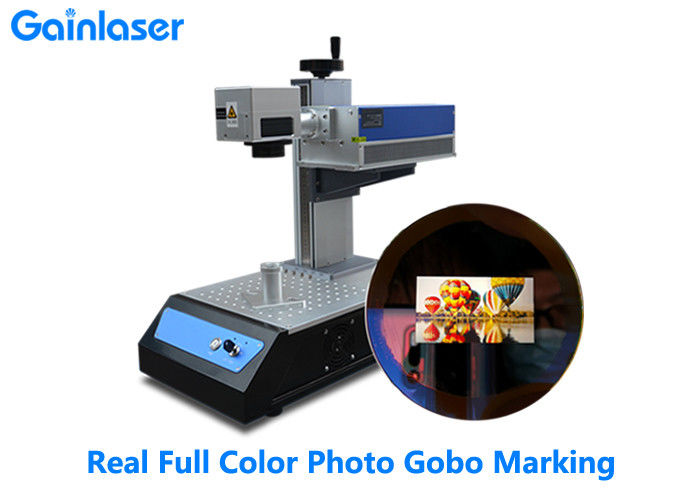

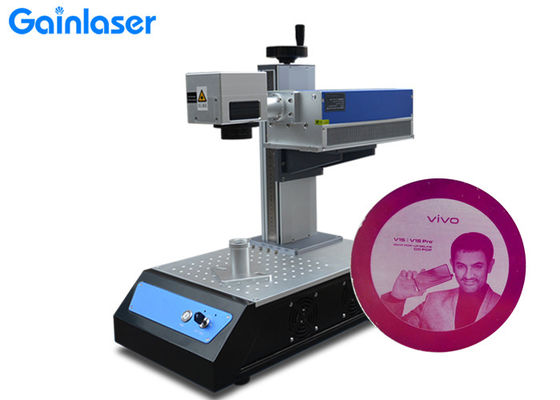

3Watt Portable Laser Marking Machine

3Watt Portable Laser Marking Machine
3Watt Portable Laser Marking Machine 3Watt Portable Laser Marking Machine

Large Image :  3Watt Portable Laser Marking Machine

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gainlaser
Certification: CE
Model Number: GL-UV-08G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Please inquire individually
Packaging Details: Export Wooden Case
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 100 sets per months
Detailed Product Description
Product Name: Gobo Glass UV Laser Marking Machine Laser Wavelength: 355nm
Pulse Width: ≤12ns@30KHz Average Laser Power: >3W@30KHz
Max Pulse Energy: >0.1mJ@30KHz Cooling Mode: Air Cooling
High Light:

3Watt Portable Laser Marking Machine


355nm Portable Laser Marking Machine


355nm laser engraver for plastic

Gobo Monogram Laser Marking Machine 3W UV Laser


1. What’s UV Laser Marking Machine?

UV Laser Marking Machine is a UV laser with the short wavelength 355nm to generate an intense energy beam breaking the molecular bonds and vaporize the substrate leaving a permanent mark without contacting the substrate. It is very suitable for sensitive and critical material(such as plastic , leather, etc.) marking with the advantage of its "cold marking" methods. Because it offers a higher absorption rate than fiber and CO2 lasers and are less likely to burn the surrounding material because they produce less heat. This is why UV laser is also referred to as “cold processing method”, while fiber and CO2 lasers are called as ‘thermal processing method’. Fiber / CO2 laser marking machine can alter or even burn some heat-sensitive materials, like plastic, leather, etc. This is because the laser energy is not fully absorbed, allowing too much light to pass through without marking the material. You’re left with indecipherable logos, unreadable barcodes, or damaged parts.

3Watt Portable Laser Marking Machine 0


2. Product Feature

  • High marking precision, minimum letter size < 0.09*0.09mm;
  • High repetitive precision galvo scan head, multi color gobos coincide exactly;
  • Narrow pulse width ≤12ns@30KHz UV laser, improving marking precision to the best;
  • High quality field lens, improving marking precision to the best;
  • Small portable machine, easy and simple operation.

3Watt Portable Laser Marking Machine 1


3. Technical Parameter

Product Name Gobo UV Laser Marker Model GL-UV-08G
Laser Wavelength 355nm Cooling Mode Air Cooled
Average Output Power ≥3W@30KHz Pulse width ≤12ns@30KHz
Marking Area 50*50mm Marking Accuracy 0.01mm
Pulse Repetition Frequence 10 KHz - 150 KHz Mininum Character Size <0.09*0.09mm
Beam Roundness @ Laser Outlet ≤98% Max Marking Speed 2000mm/s
Machine Size L670*W320*H670mm Net Weight 35KG
Laser Source Brand Gainlaser Power Supply AC110V / 220V +10% / 50HZ or 60HZ
Control Board & Software Brand JCZ / EZcad2 Operation System Win XP / 7 / 8 / 10

(32 bit , 64 bit)



4. Marking Sample

3Watt Portable Laser Marking Machine 23Watt Portable Laser Marking Machine 3

3Watt Portable Laser Marking Machine 4


5. FAQ

1. Are you manufacturer or reseller?
Answer: Since the year of 2002, our company engages laser processing equipments. At beginning, we design and produce the metal housing of laser processing machines. In 2013, our company began developing laser scan heads, including mirror wavelength 355nm, 532nm, 1064nm & 10.6μm. With our company business development, we research and develop DPSS laser from the year of 2015. Meanwhile, we provide complete UV laser marking machines. We’re a well-known brand and have increasing market share in domestic market, we have more than 3000 clients in China domestic market.

2. How do you position your UV laser for product quality compared to your competitors of HUARAY, Inno, Inngu?

Answer: In terms of market feedback, the quality of our UV laser is almost same with the competitors. According to test report, the technical parameters of our lasers are very close to HUARAY, you could compare the parameters yourself. And, our UV laser adopts American brand imported semiconductor, including ‘Nlight’, ‘Coherent’, etc. Besides, our UV lasers are small size and portable design, for example our air cool UV laser size L374*W142*H125mm, net weight 8KG and water cool UV laser size L395*W142*H125mm, net weight 7.5KG.

3. How about the performance of your scan head?

Answer: no deformation when mark tiny letters for example letter height 0.1mm. The repetitive positioning precision of our scan head is within 10μm. According to our technical testing, mark two same patterns on transparent materials by using our scan head, both of the patterns can coincide exactly.

4. What’s the marking control board and software in your machine?
Answer: we adopt JCZ control board and EZcad software.

5. What kind of materials can your machines mark?

Answer: UV laser can mark most common materials, including plastic, glass, metal, leather, diamond, wood, paper, etc. Compared with fiber laser and CO2 laser, the processing temperature of UV laser is obviously lower, and UV laser’s heat affected zone is smaller. For some materials, UV laser works better. Besides, since UV laser’s wavelength is shorter and its focused laser spot is much smaller, the marking precision of UV laser is obviously higher, which make it especially suitable to mark small letters.

6. What’s the warranty of your products? After I purchase your products, if any problem happens, what can you help us?

Answer: the warranty of our products are 12 months. If any non-artificial problem happen to our products, free spare parts will be provided to you, or we help you to repair it. We provide on-line remote technical support. Any requirement of after-sale need from client is responded in 24 hours.
