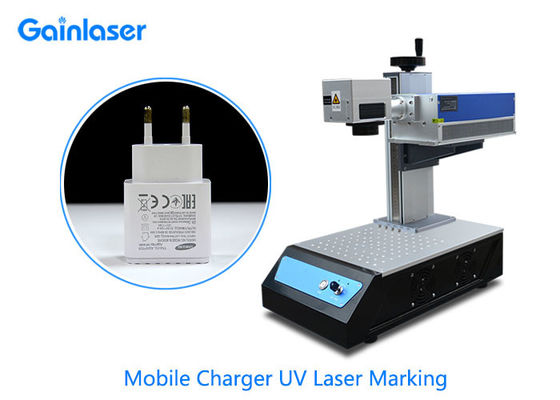

3W 355nm Air Cooled Laser Marking Machine For Plastic

3W 355nm Air Cooled Laser Marking Machine For Plastic
3W 355nm Air Cooled Laser Marking Machine For Plastic 3W 355nm Air Cooled Laser Marking Machine For Plastic 3W 355nm Air Cooled Laser Marking Machine For Plastic 3W 355nm Air Cooled Laser Marking Machine For Plastic

Large Image :  3W 355nm Air Cooled Laser Marking Machine For Plastic

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gainlaser
Certification: CE
Model Number: GL-UV-08A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Please inquire individually
Packaging Details: Export Wooden Case
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100 units per months
Detailed Product Description
Product Name: Portable UV Laser Marking Machine Laser Wavelength: 355nm
Average Ouput Power: >3W@30KHz Max Pulse Energy: 0.1mJ@30KHz
Pulse Duration: <15ns@30KHz Pulse Repetition Frequency: 1-150KHz
High Light:

355nm laser marking machine for plastic

,

3W laser marking machine for plastic

,

3W plastic marking machine

Small UV Laser Marking Machine 3W 355nm



1. Product Highlight

  • 355nm DPSS UV laser with average output power ≥3W@30KHz, pulse width ≤15ns@30KHz;
  • American brand semiconductor module, high working stability, laser lifespan >20,000 hours;
  • Mark plastic, glass, metals, wood, leather, fruits, paper, etc.;
  • Short wavelength 355nm, generating tiny focused laser spot(φ <0.01mm), achieving high precise marking;
  • Cold processing method, small heat affected area, little thermal deformation on material surface;
  • Small size and light weight, an adult male can move the machine easily;
  • Professional JCZ control board and EZcad2 software, easy operation & excellent functions;
  • High repetitive precision 0.02mm galvo scanner with clear aperture 10mm, high marking quality;
  • Structure-optimized aluminum profile cooling module, in-built 7 cooling fans, quick cooling effect.

3W 355nm Air Cooled Laser Marking Machine For Plastic 0

3W 355nm Air Cooled Laser Marking Machine For Plastic 1

2.
Comparison among 355nm UV Laser, 1064nm Fiber Laser and 10600nm CO2 Laser

1) The shorter the wavelength, the more concentrated the energy. The greater the energy, the more light that material will absorb. Greater absorption = Better quality mark. Compared with long wavelength 1064nm fiber laser and CO2 laser, 35nm UV laser can make better quality mark;

Wavelength Type Wave Length Laser Type
Short Wavelength 355 nm UV Laser
Moderate Wavelength 1064 nm Fiber Laser
Long Wavelength 10600 nm CO2 Laser



2) UV lasers are generally used for intricate, precise marks on the micro level. Their focused wavelengths allow for a high beam intensity and miniscule spot size;

3) UV laser are especially suitable for laser marking soft materials. Because it offers a higher absorption rate than fiber and CO2 lasers and are less likely to burn the surrounding material because they produce less heat. This is why UV laser is also referred to as “cold processing method”, while fiber and CO2 lasers are called as ‘thermal processing method’;

4) Fiber / CO2 laser marking machine can alter or even burn some heat-sensitive materials, like plastic, leather, etc. This is because the laser energy is not fully absorbed, allowing too much light to pass through without marking the material. You’re left with indecipherable logos, unreadable barcodes, or damaged parts.

3W 355nm Air Cooled Laser Marking Machine For Plastic 2



3W 355nm Air Cooled Laser Marking Machine For Plastic 3



3. Technical Parameter

Product Name

Portable UV Laser Marking Machine

Model

GL-UV-08A

Laser Wavelength

355nm

Cooling Mode

Air Cooled

Average Output Power

≥3W@30KHz

Pulse Width Type

≤15ns@30KHz

Marking Area

110*110mm

Marking Accuracy

0.01mm

Pulse Repetition Frequence

10 KHz - 150 KHz

Mininum Character Size

0.15*0.15mm

Beam Roundness @ Laser Outlet

≤96%

Max Marking Speed

2000mm/s

Machine Size

L670*W320*H670mm

Net Weight

34KG

Laser Source Brand

Gainlaser

Power Supply

AC110V / 220V +10% / 50HZ or 60HZ

Control Board & Software Brand

JCZ / EZcad2

Operation System

Win XP / 7 / 8 / 10

(32 bit , 64 bit)



4. UV Laser Parameters

3W 355nm Air Cooled Laser Marking Machine For Plastic 4



5. UV Laser Marking Samples
1) Plastic Material Marking

UV laser can apply to most universal plastic and some engineering plastics, such as PP, PE, PBT, PET, PA, ABS, POM, PS, PC, PUS, EVA, etc., and plastic alloy, like PC/ABS and other material. The marking is clear and bright, and can mark black and white color on natural color plastic, white plastic, colored plastic and black plastic. Successful commercialized application in the plastics include animal ear tag, light switch cover, cosmetic packaging material, vehicle interior button and doorknob, instrument panel, ABS keyboard, HDPE, PET and PVC rigid container and container cover, nylon and PBT automobile and non-automobile electrical connector, engine hood element such as fuse box and air cap, anti-counterfeit labels, container lock catch, stationery, home appliance shell, etc.

3W 355nm Air Cooled Laser Marking Machine For Plastic 53W 355nm Air Cooled Laser Marking Machine For Plastic 6

3W 355nm Air Cooled Laser Marking Machine For Plastic 73W 355nm Air Cooled Laser Marking Machine For Plastic 8

3W 355nm Air Cooled Laser Marking Machine For Plastic 9



2) Other Material

3W 355nm Air Cooled Laser Marking Machine For Plastic 10

3W 355nm Air Cooled Laser Marking Machine For Plastic 11

3W 355nm Air Cooled Laser Marking Machine For Plastic 12



6. FAQ

1. Are you manufacturer or reseller?
Answer: Since the year of 2002, our company engages laser processing equipments. At beginning, we design and produce the metal housing of laser processing machines. In 2013, our company began developing laser scan heads, including mirror wavelength 355nm, 532nm, 1064nm & 10.6μm. With our company business development, we research and develop DPSS laser from the year of 2015. Meanwhile, we provide complete UV laser marking machines. We’re a well-known brand and have increasing market share in domestic market, we have more than 3000 clients in China domestic market.

2. How do you position your UV laser for product quality compared to your competitors of HUARAY, Inno, Inngu?

Answer: In terms of market feedback, the quality of our UV laser is almost same with the competitors. According to test report, the technical parameters of our lasers are very close to HUARAY, you could compare the parameters yourself. And, our UV laser adopts American brand imported semiconductor, including ‘Nlight’, ‘Coherent’, etc. Besides, our UV lasers are small size and portable design, for example our air cool UV laser size L374*W142*H125mm, net weight 8KG and water cool UV laser size L395*W142*H125mm, net weight 7.5KG.

3. How about the performance of your scan head?

Answer: no deformation when mark tiny letters for example letter height 0.1mm. The repetitive positioning precision of our scan head is within 10μm. According to our technical testing, mark two same patterns on transparent materials by using our scan head, both of the patterns can coincide exactly.

4. What’s the marking control board and software in your machine?
Answer: we adopt JCZ control board and EZcad software.

5. What kind of materials can your machines mark?

Answer: UV laser can mark most common materials, including plastic, glass, metal, leather, diamond, wood, paper, etc. Compared with fiber laser and CO2 laser, the processing temperature of UV laser is obviously lower, and UV laser’s heat affected zone is smaller. For some materials, UV laser works better. Besides, since UV laser’s wavelength is shorter and its focused laser spot is much smaller, the marking precision of UV laser is obviously higher, which make it especially suitable to mark small letters.

6. What’s the warranty of your products? After I purchase your products, if any problem happens, what can you help us?

Answer: the warranty of our products are 12 months. If any non-artificial problem happen to our products, free spare parts will be provided to you, or we help you to repair it. We provide on-line remote technical support. Any requirement of after-sale need from client is responded in 24 hours.
