|Laser Wavelength:||355nm||Cooling Mode:||Water Cooled|
|Laser Power:||＞5W@40KHz||Pulse Width:||≤15ns@40KHz|
|Max Pulse Energy:||0.125mJ@40KHz||Max Marking Speed:||2000mm/s|
120KG UV Laser Marking Machine,
10mm aperture UV Laser Marking Machine,
10mm aperture laser marker machine
Industrial Marking Machine UV Laser 5W
1. Product Description
2. Technical Parameter
|Product Name||Glass Laser Marking Machine||Model||GL-UV-01N|
|Laser Wavelength||355nm||Cooling Mode||Water Cooled|
|Average Output Power||＞5W@40KHz||Pulse Width Type||≤15ns@40KHz|
|Marking Area||100*100mm||Marking Accuracy||0.01mm|
|Pulse Repetition Frequence||10 KHz - 150 KHz||Mininum Character Size||0.15*0.15mm|
|Beam Roundness @ Laser Outlet||≤96%||Max Marking Speed||2000mm/s|
|Machine Size||L850*W650*H1378mm||Net Weight||120KG|
|Laser Source Brand||Gainlaser||Power Supply||AC110V / 220V +10% / 50HZ or 60HZ|
|Control Board & Software Brand||JCZ / EZcad2||Operation System||
Win XP / 7 / 8 / 10
(32 bit , 64 bit)
3. Laser Source Parameter
4. Glass Marking Samples:

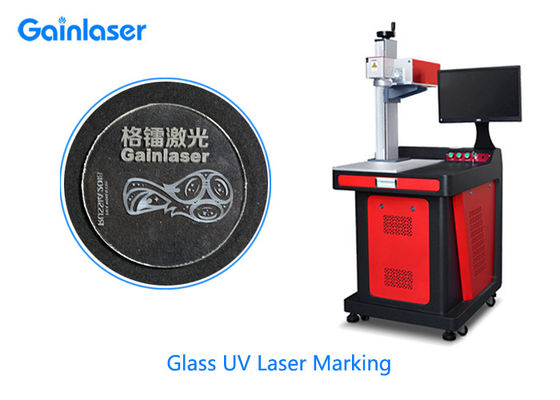

1) Glass Marking Samples
Since the focal spot of UV laser is very tiny and processing temperature is low, furthermore as a non-contact marking technology, UV laser is very suitable to mark glass material. Successful UV laser commercialized applications include wine bottle, flavour bottle, drinking bottle and other industries glass bottle package and glass tableware, glass crafts gifts, crystal marking, etc. Besides marking glass directly, UV laser can also remove paint or coat on glass to form text or pattern, like logo, number or other patterns;
2) Metal Marking Sample
UV laser can mark identification on common metals, such as stainless steel, copper, aluminum, gold, silver, carbon steel, various alloy steel, tool steel, hard alloy, aluminum alloy, chromium plating, nickel plating, zinc plating, various grinding, polished metal surface, etc. The identification can be logo, product name, technical parameter, supplier name, safety matters, etc.
3) Plastic Marking Sample
UV laser can apply to most universal plastic and some engineering plastics, such as PP, PE, PBT, PET, PA, ABS, POM, PS, PC, PUS, EVA, etc., and plastic alloy, like PC/ABS and other material. The marking is clear and bright, and can mark black and white color on natural color plastic, white plastic, colored plastic and black plastic. Successful commercialized application in the plastics include animal ear tag, light switch cover, cosmetic packaging material, vehicle interior button and doorknob, instrument panel, ABS keyboard, HDPE, PET and PVC rigid container and container cover, nylon and PBT automobile and non-automobile electrical connector, engine hood element such as fuse box and air cap, anti-counterfeit labels, container lock catch, stationery, home appliance shell, etc.
4) KN95 Mask Marking
5. Company Profile
Shenzhen Gainlaser Laser Technology Co., Ltd. is a professional manufacturer of DPSS nanosecond lasers(355nm, 532nm & 1064nm), DPSS picosecond lasers(1064nm), scan head(355nm, 532nm, 1064nm & 10.6μm) and laser marking machines in Shenzhen, China. Since 2002 established, our group company has been engaging in laser equipments.
Our R&D team is led by Professor Huang Guobiao, former director of SSL Research Center of HUST University, who developed the first picosecond laser in China. Gainlaser has a 100-class dust-free purification laboratory and production workshop, equipped with complete instruments and equipments for solid-state laser testing and auxiliary production. We owns the independent intellectual property rights.
We have complete mechanical processing and sheet metal processing capabilities, and high related supporting capabilities of laser equipments. Besides, we provide complete after-sales services, which responds to clients' after-sales needs quickly.
